Hidromotor OMR 50 Danfoss
1.331,00 RON
(IVA incluso)
Spese di spedizione non incluse
Come possiamo aiutare?
Hidromotor/ Motor hidraulic OMR 50 Danfoss
| Consists of |
Supplied with Key
|
|
|---|---|---|
| Flange shape |
Oval
|
|
| Number of mounting holes |
2
|
|

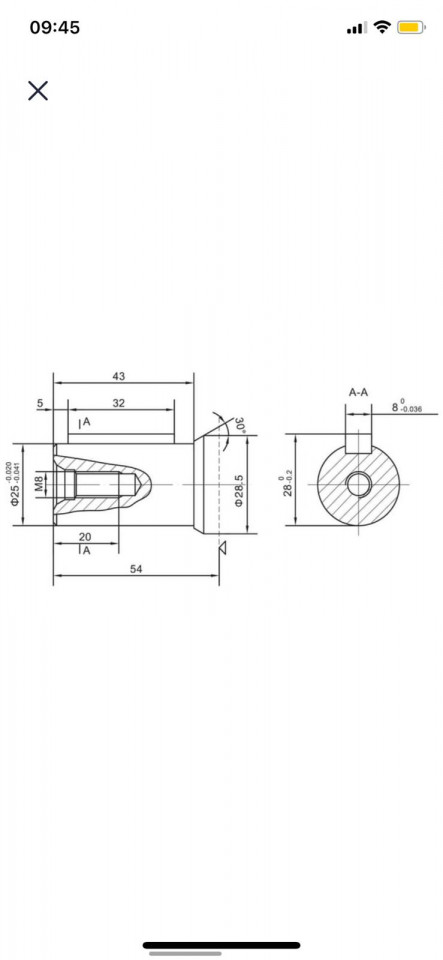

| Shaft type |
Cylindrical
|
|
| Shaft diameter |
25 mm
|
|
| Displacement |
50 cm³/rev
|
|
| Max continuous torque |
930 N·m
|
|
| Max. continous working pressure |
140 BAR
|
|
| Max intermittend working pressure |
175 BAR
|
|
| Max pressure peak |
200 BAR
|
|
| Max. flow rate |
40 l/min
|
|
| Max rotation speed |
770 r/min
|
|
| Min rotation speed |
10 r/min
|
|
| Main port thread diameter |
1/2 Inch
|
|
| Main port thread type |
BSP
|
|
| Drain port thread diameter |
1/4 Inch
|
|
| Drain port thread type |
BSP
|
|
| Port position |
Side
|
|
| L1Rotor length |
9 mm
|
|
| Max. power |
8 kW
|
Categorie
Peso
7 kg
