Pompa hidraulica CASAPPA 65280016
18.755,00 RON
(TVA inclus)
24.200,00 RON
Costurile de livrare nu sunt incluse
Cum te putem ajuta?

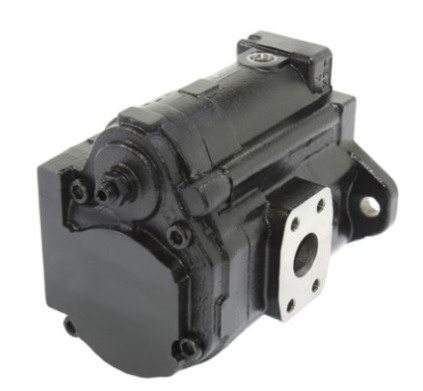

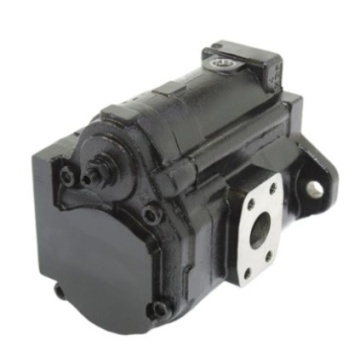

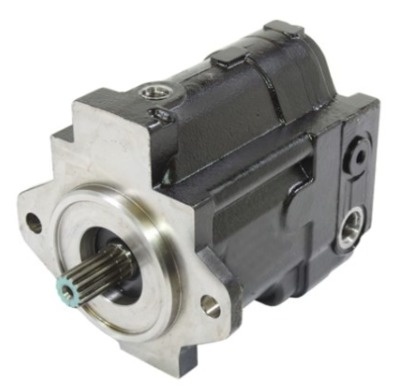

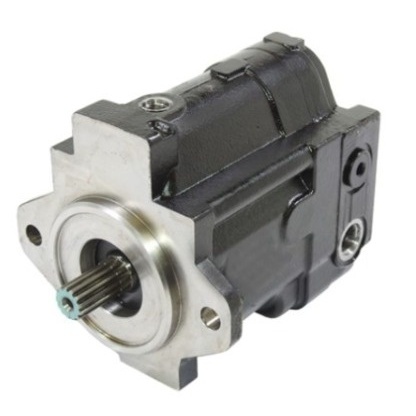

Pompa hidraulica CASAPPA 65280016
SVP 22D0-04S5-LMD/OC-N
Marcă OEM Quality
Type of pump piston pump
Type axial pistons
Number of elements 1
Total number of suction ports 1
Total number of pressure ports 1
Type of flange A
Diameter flange mounting holes D114.5 mm
Center distance mounting holes flange C1146 mm
Total length L 1245 mm
Neck diameter D 2101.6 mm
Type of shaft E
Distance from flange to end L 241 mm
Diameter shaft D 322 mm
Number of splines 13
Thread size (on shaft) TA11/4
Type of thread TA1UNC
Pitch imperial TA120
Right or left handed thread TA1right-handed
Unit of thread TA1imperial
Direction of rotation clockwise
Number of suction ports 1st element 1
Type biggest suction port 1st element TY-COa C
Thread size of suction port 1st element TA-Coa M10
Pitch metric TA- Coa1.5 mm
Right or left handed thread TA-Coaright-handed
Unit of thread TA-Coametric
Center distance between mounting holes C-CO 1a30.2 mm
Center distance between mounting holes C-CO2a 58.7 mm
Diameter suction side of 1st element D-Pa 31.8 mm
Number of pressure ports 1st element 1
Type biggest pressure port 1st element TY-COb E
Thread type pressure side of 1st element TA-Pb 7/8
Type of thread TA-Pb UNF
Pitch imperial TA-Pb 14
Right or left handed thread TA-Pb right-handed
Unit of thread TA-Pb imperial
Flow control valve present
Flow rate (L/min) 57.2 l/min
Flow rate (cc/rev) 22 cc/rev
Maximum pressure pump 250 Bar
Material housing metal
Coupling present
Greutate (kg) 17
